ATAS Roofing Products ScanRoof ® Hurricane Resistant Roofing Item Number: RF-ATAS-SR |
|

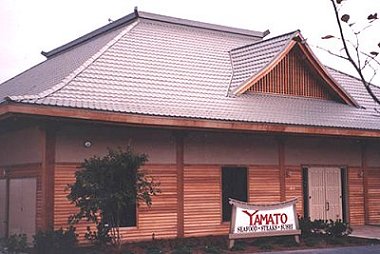

ScanRoof ®, a modern, lightweight, easy to install metal roof panel, simulates a tile roof. The panel is installed horizontally, eave to ridge, on an open frame system, or solid deck. ScanRoof has a 2" integral Z purlin allowing for air flow between the panel and substrate, and may span up to 48" o.c. It is lightweight, allowing installation over an existing roof without the need of tear-off and disposal. ScanRoof has a smooth texture with a quality finish. Typical applications for ScanRoof are commercial and residential roofing with, a recommended minimum pitch of 3:12; also suitable for mansards.
| |
|
ScanRoof ® Hurricane Resistant Roofing
A steep slope, structural tile. The ideal roofing system to stand up against mother natures storms, typhoons, hurricanes, damaging winds and driving rains. The panels are structural, practical and economically efficient for any project. Width: 21", including purlin Length: 13’-10" Coverage area per panel: 18.1 sq feet Height of Z purlin: 2" Height of front step: 1" Available Trim: Eave trim, gable trim, J channel, fascia, hip & ridge cap, and valley trim. Available Materials: 24ga Galvalume Steel Colors: 26 standard ATAS colors
|
|
Ascot White |
Black |
Bone White |
Boysenberry |
Brite Red |
Chocolate Brown |
Classic Bronze |
Concord Cream |
Dove Grey |
Forest Green |
Hartford Green |
Hemlock Green |
Medium Bronze |
Mint Green |
Mission Red |
Patina Green |
Rawhide |
Redwood |
Regal Blue |
Rocky Grey |
Sandstone |
Siam Blue |
Sierra Tan |
Slate Blue |
Slate Grey |
Teal |
| Colors may vary with Printer and Screen Configuration. See your Eco-$mart Representative for a physical color sample. |
| " .
